This is a photo guide for how to measure and cut your rear control arms when installing Silhouette Autosports adjustment brackets. This guide also serves to help DIYers who are doing this mod themselves.

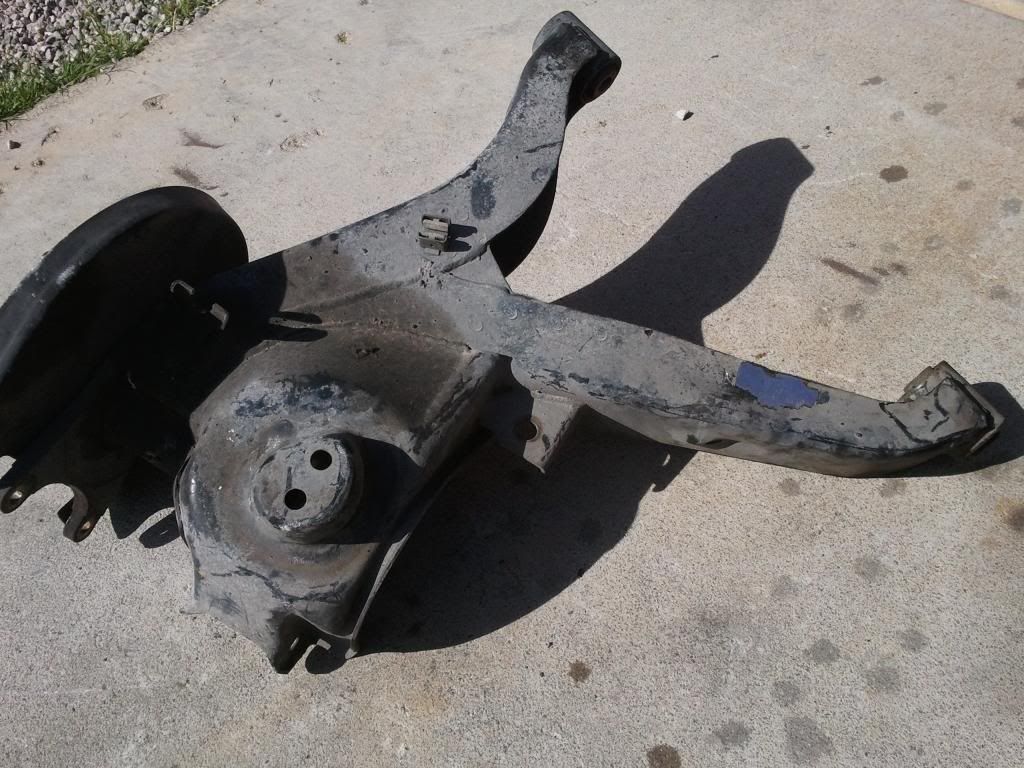

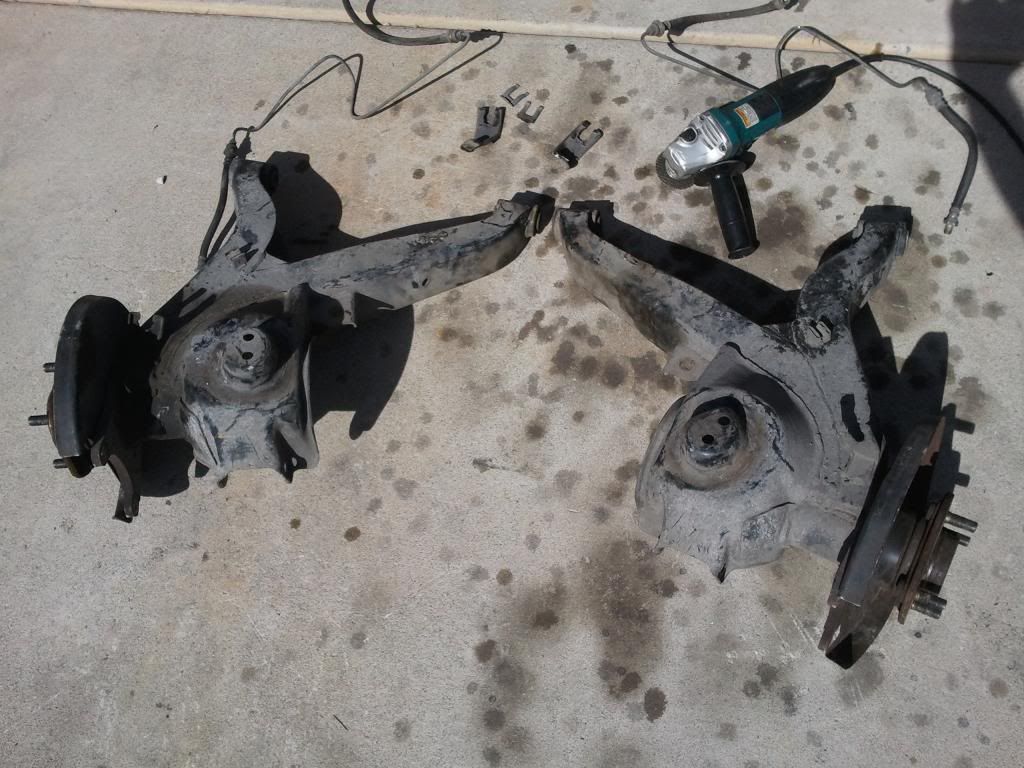

Rear control arms with axles, brake calipers, brake rotors, brake lines, and brake line bracket removed. Z31 arms pictured but S12 arms are the same process.


Driver's (left) side control arm

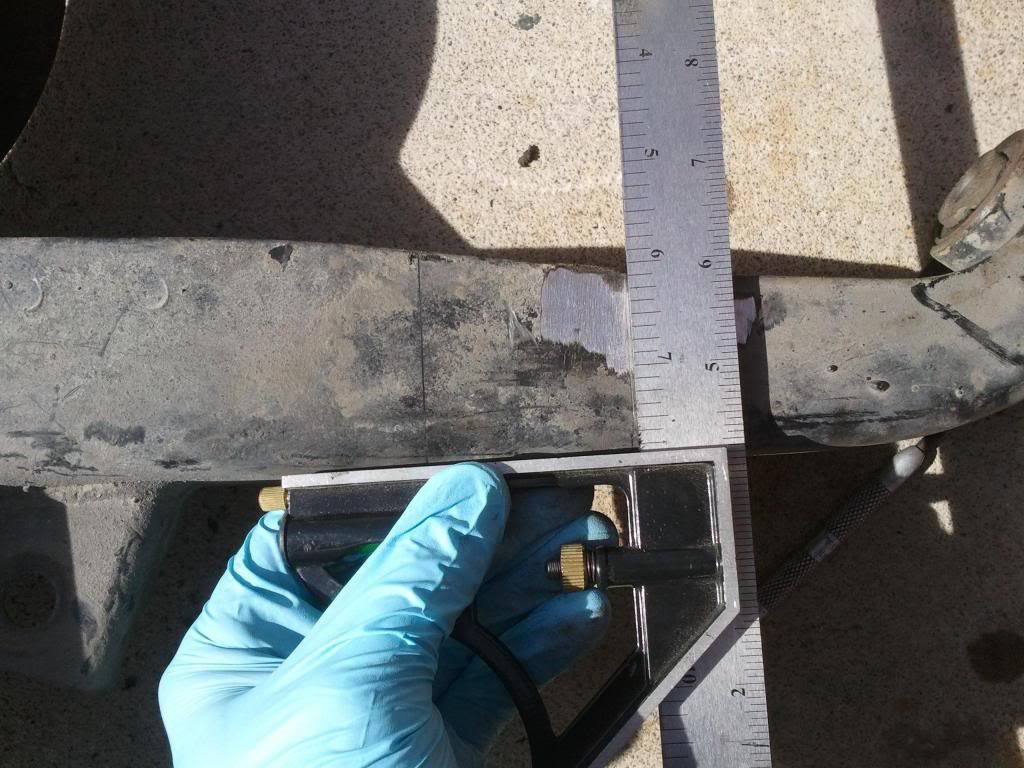

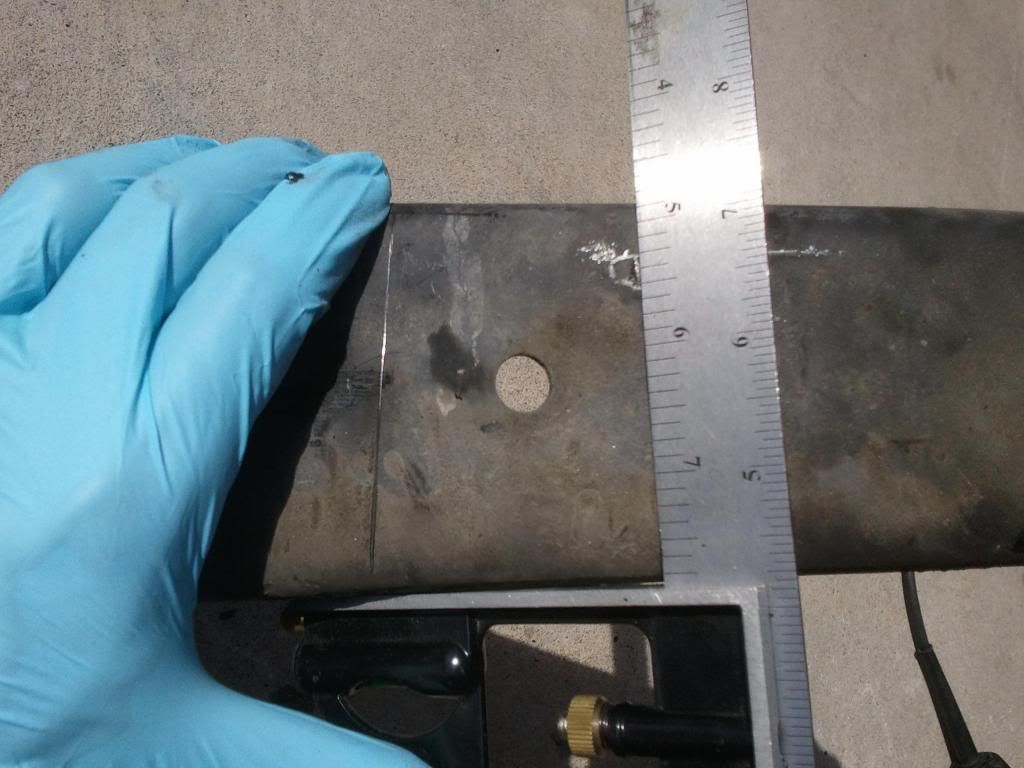

Make the first mark. Using a 90 degree square guide scribe a line near the stamped hole as pictured. The bushing is to the right and the hub is to the left. The guide is 1 1/16"(27mm) to 1 1/8"(29mm) from the stamped hole. The guide is placed on the top surface of the control arm so that the mark is made 90 degrees from the angle of the top surface.

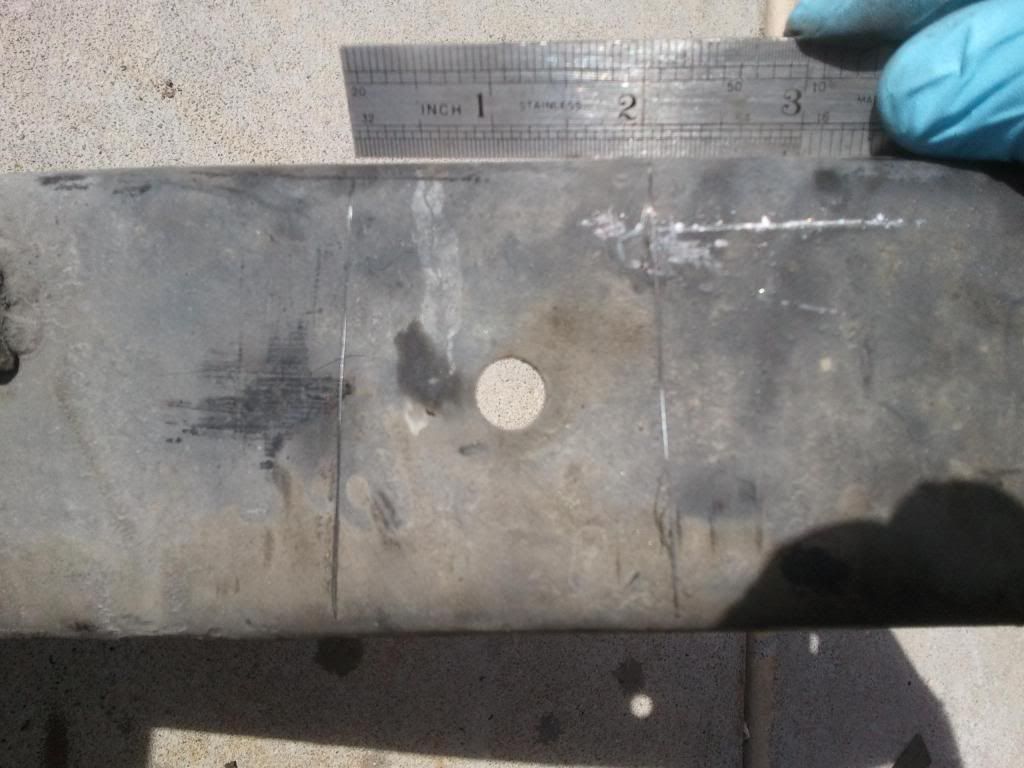

First mark is made.

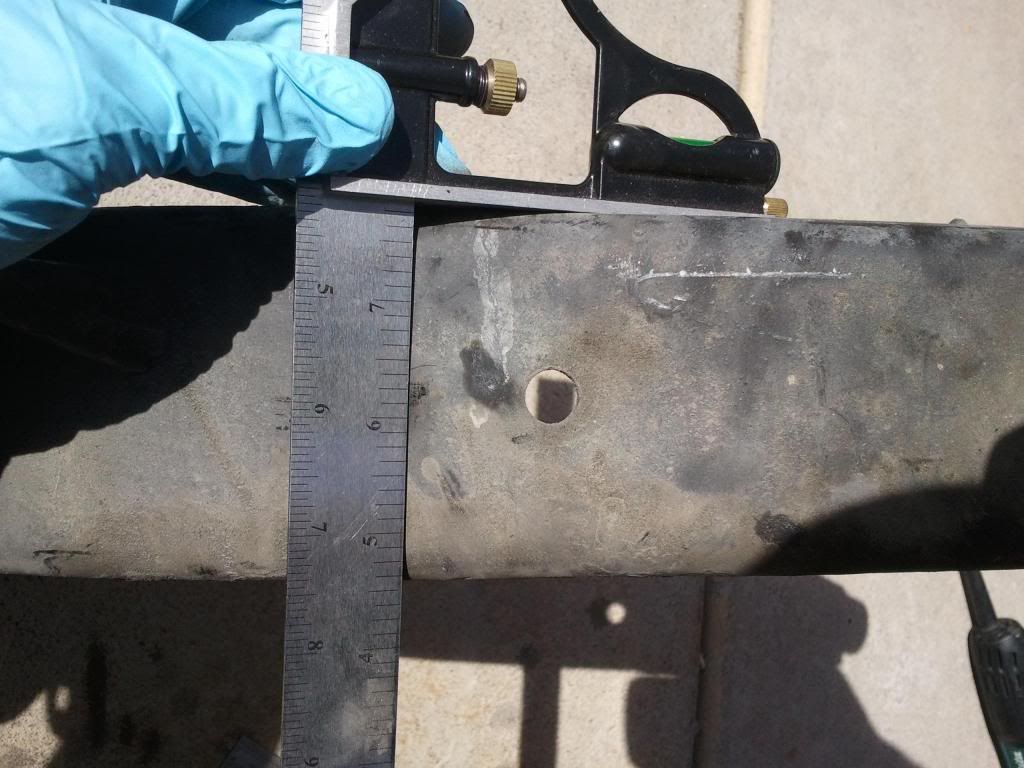

Make the second mark. Distance between the two lines at the top surface of the control arm is 2 inches(51mm). The guide is placed on the bottom surface of the control arm so that the mark is made 90 degrees from the bottom surface.

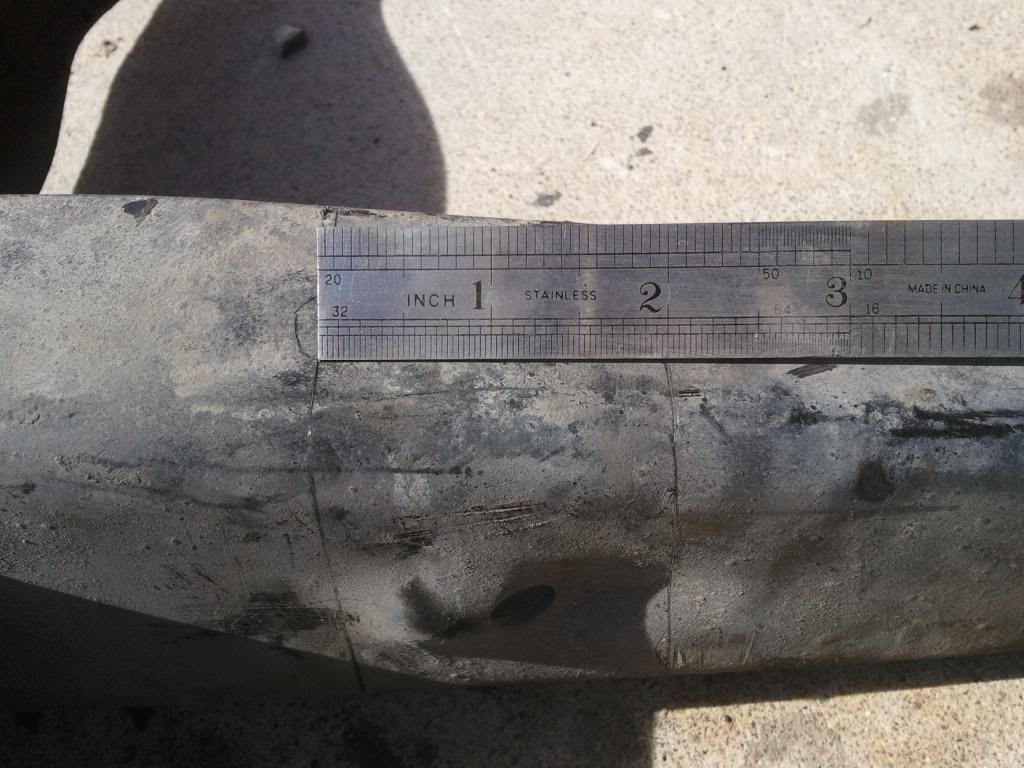

Second mark is made. 2 inches(51mm) between the two lines at the top.

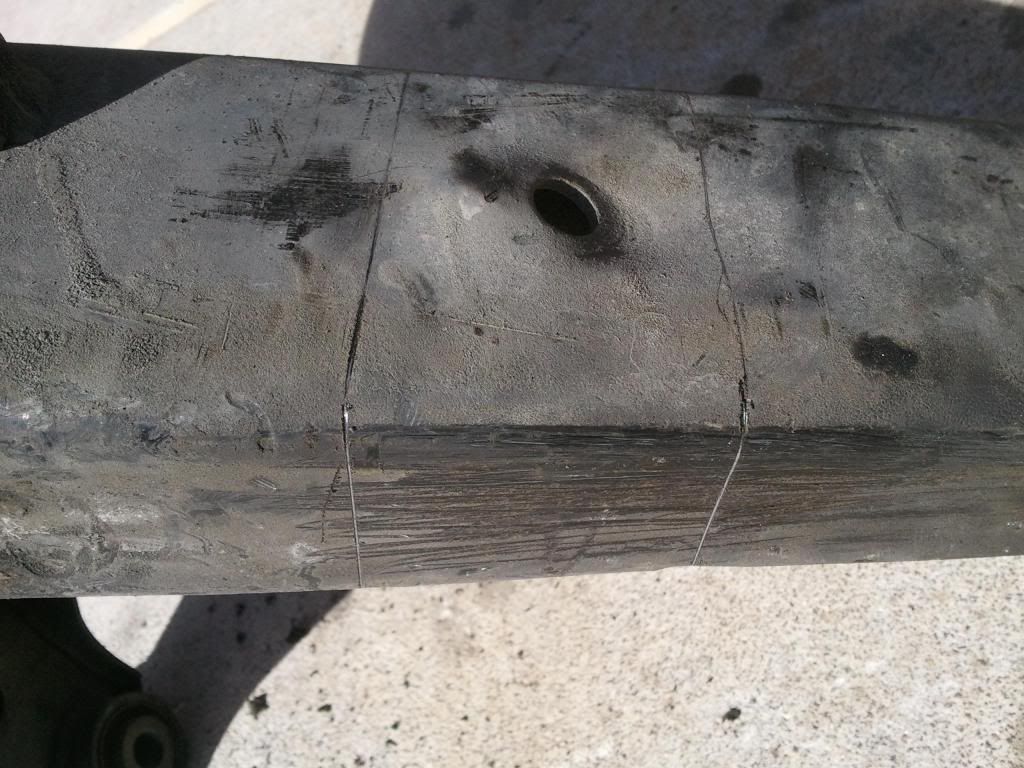

Continue the lines on the top and bottom surfaces of the control arm. Make them 90 degrees from the front face of the control arm.

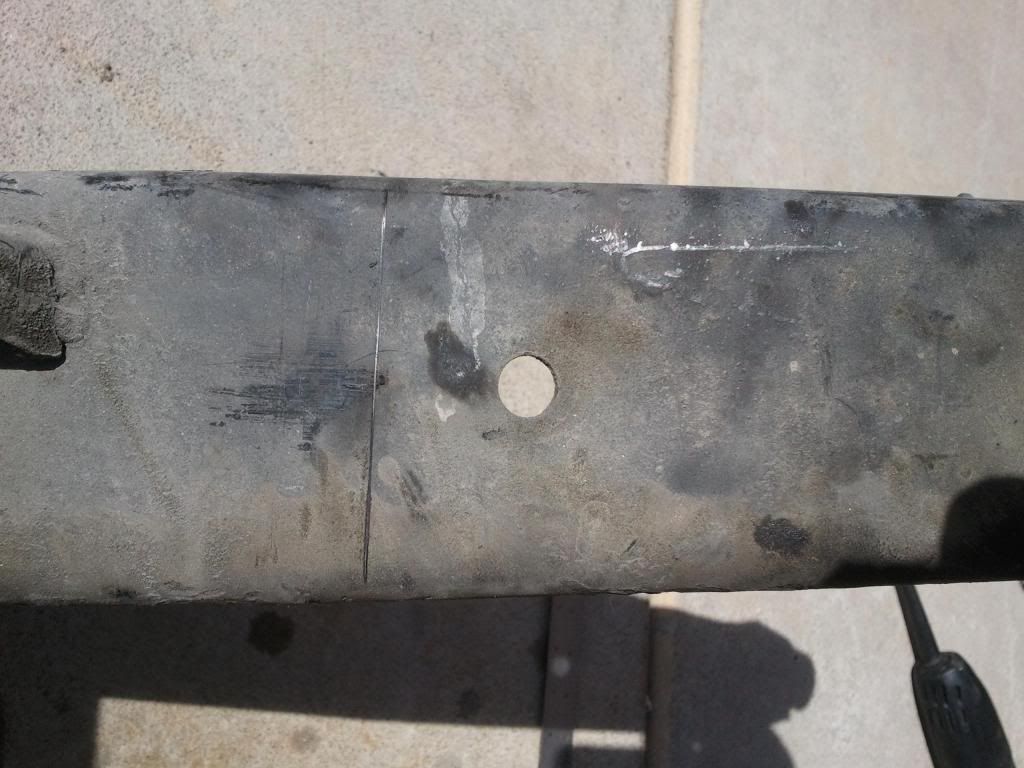

Double check there is 2 inches(51mm) between the lines on the top surface of the control arm.


The lines can be made anywhere from 90 to 93 degrees. The greater angle will create more camber correction before adjusting. A typical lowered S12/Z31 will be ok with 90 degrees. For extreme lowering AND zero or near zero camber angle 93 degrees is required. WARNING: Too much correction angle may result in difficult control arm installation and may cause control arm bushings to bind. Polyurethane bushings are recommended.

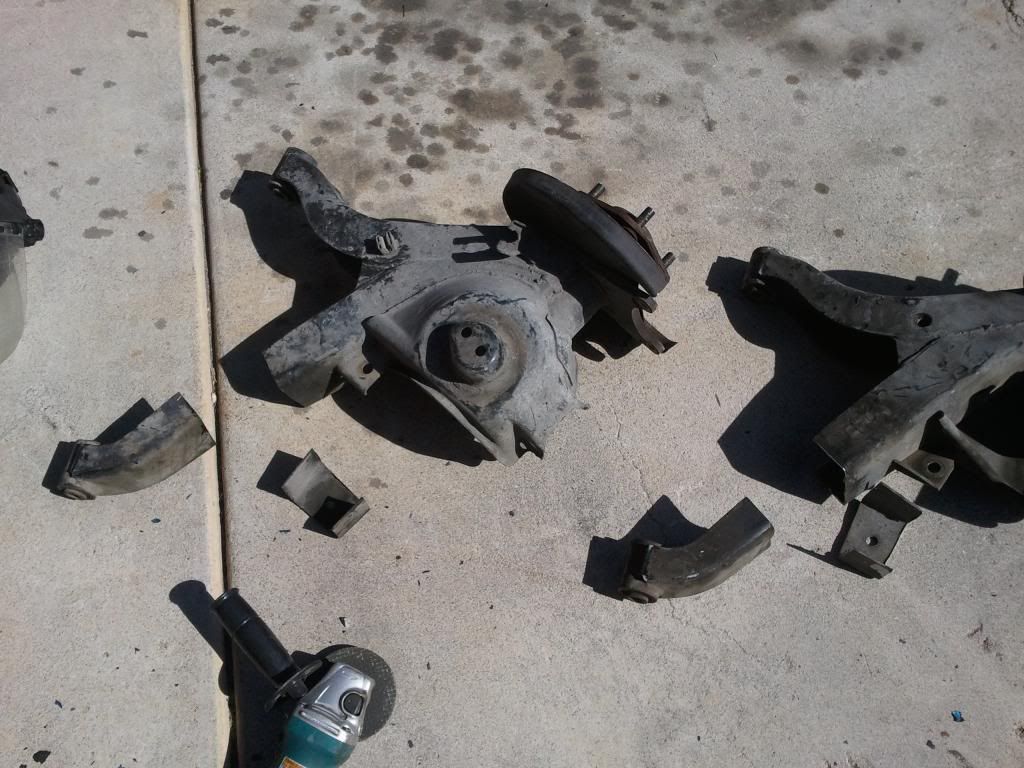

Layout both arms this way and make your cuts on the lines.


Flatten the indentation left on the small end of the control arm. Pictured is flattened on left and not flattened on right. Easiest method to flatten it is to place it on a solid surface like a metal bench top or concrete floor. Then strike the indentation downward with a large hammer.

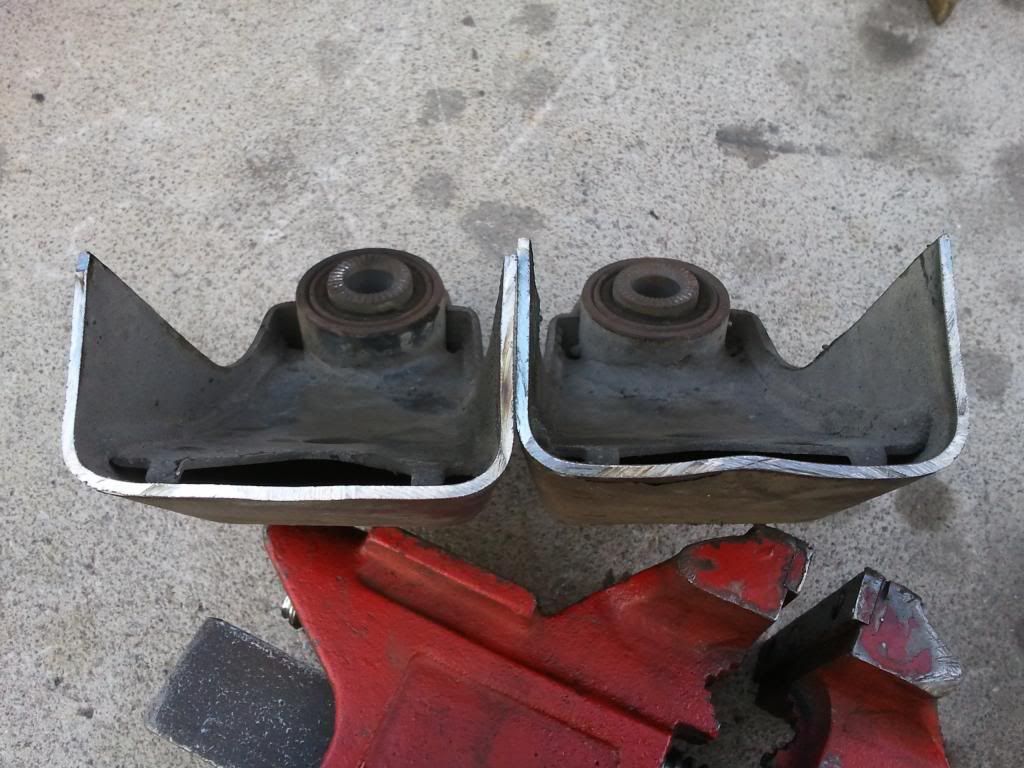

Adjustment brackets

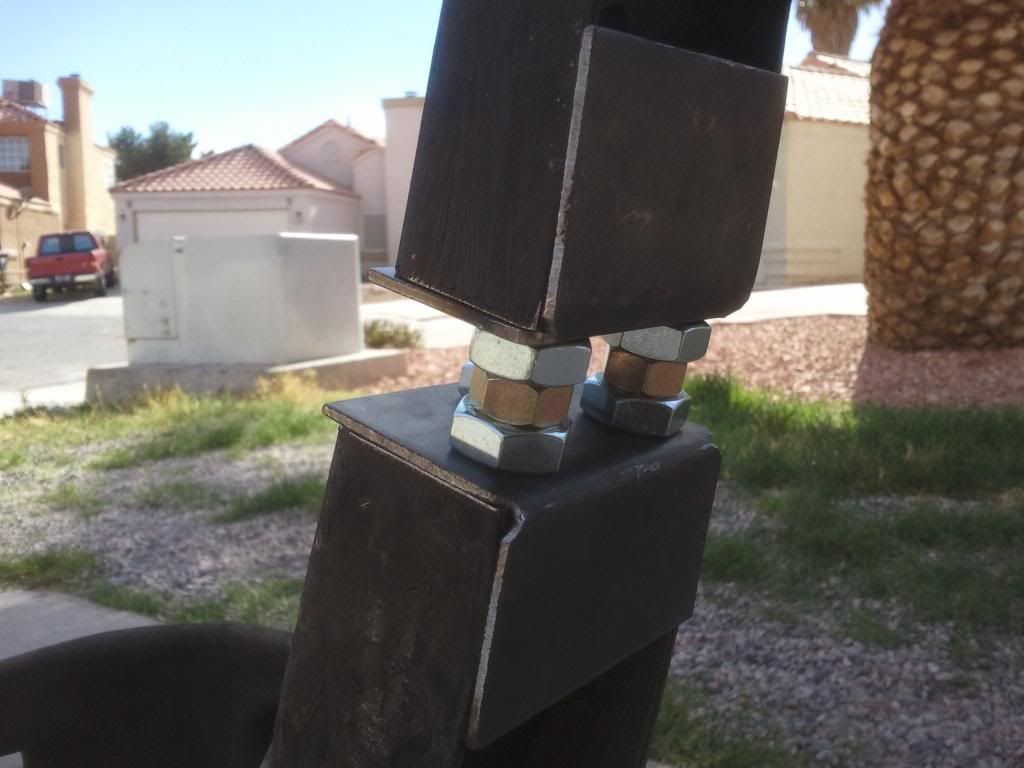

Brackets test fitted to control arms.






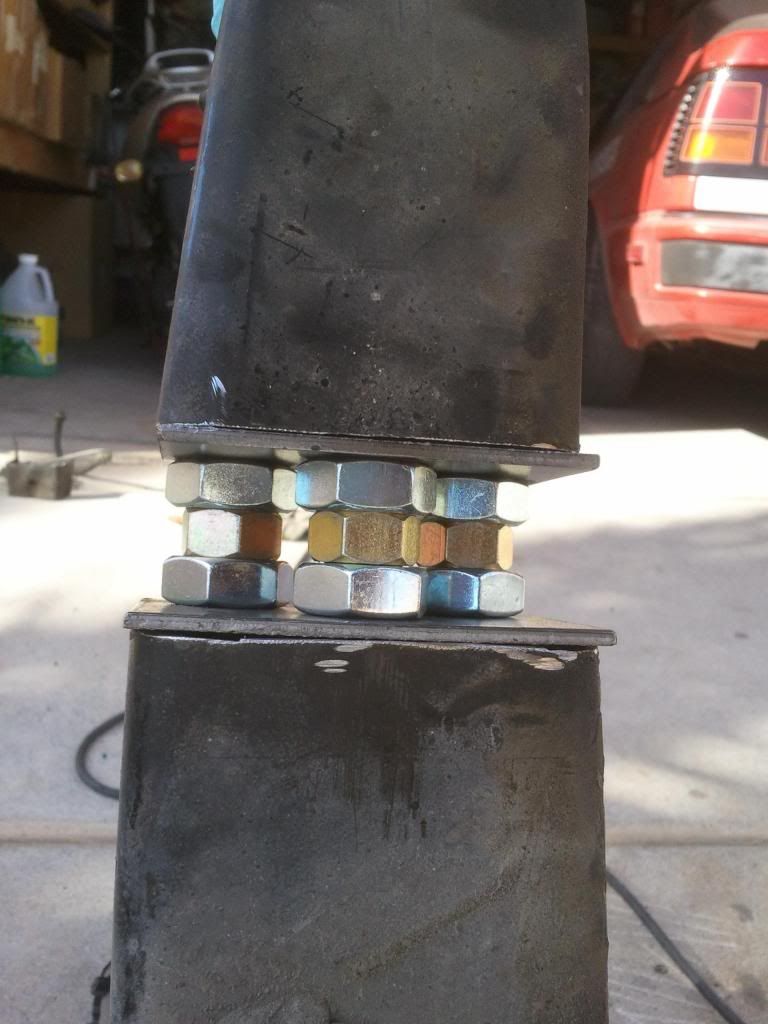

Weld the brackets into the control arms out of the car and not bolted to the subframe.

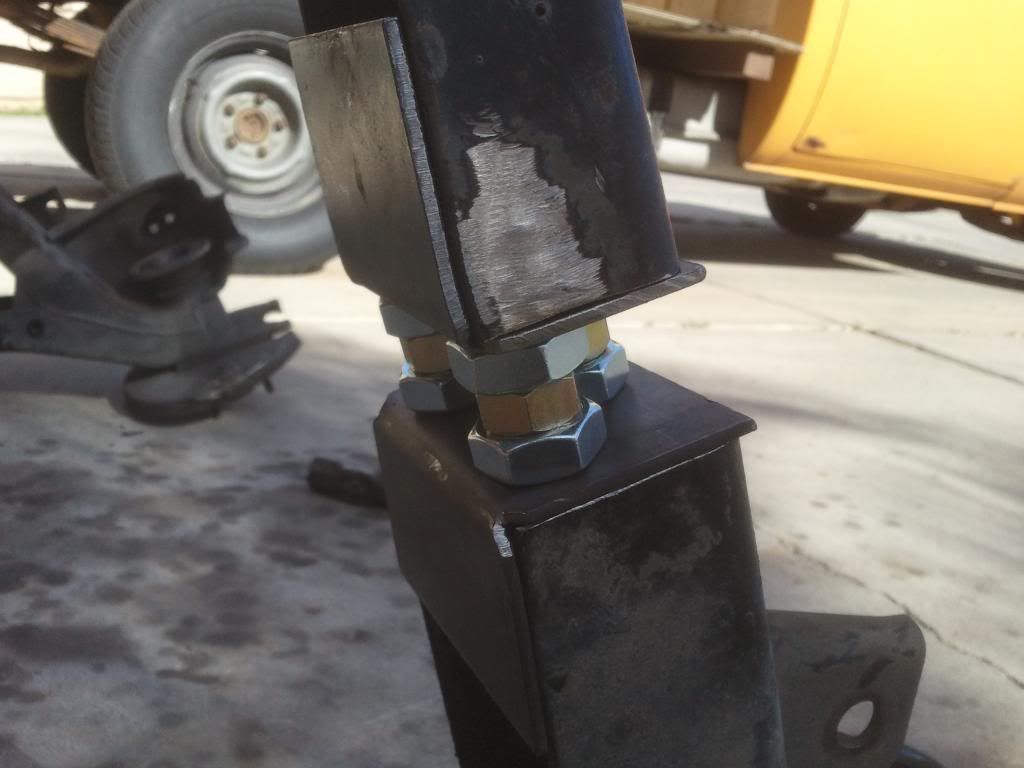

Finished result




Installing the arms onto the car may require adjusting the brackets for length and angle until they fit. It may still be difficult to align the contol arm bolts. A rubber mallet, pry bar, and persistence may be required.

Reinstall brake lines, rotors, calipers, and axles. You are done.
