Author Topic: Silhouette Autosports adjustable rear control arm ALIGNMENT GUIDE  (Read 2686 times)

Offline IggyEGuana

  • Builder - Driver
  • S12 Guru
  • *****
  • Location: Hawthorne, California, USA
  • Posts: 3,754
Heres a basic photo guide of how to make alignment changes with Silhouette Autosports adjustable rear control arms.



A basic explanation of how they work
The threaded adjusters are left-hand thread on one end and right-hand thread on the other. Turning them either lengthens or shortens the gap in the control arm bracket. Because there are 3 of them we can adjust them independently and "bend" the control arm.  The factory toe adjustment is still used to dial in toe precisely after camber is adjusted and toe is close. You should turn each adjuster a little at a time so they move together and avoide premature binding. Camber adjustment is maxed out when the adjusters bind and can't be turned anymore using reasonable force. DO NOT USE EXTRA LENGTHS OF PIPE, ETC TO GAIN MORE LEVERAGE ON THE WRENCH!! DAMAGE TO THE THREADS MAY OCCUR!!!

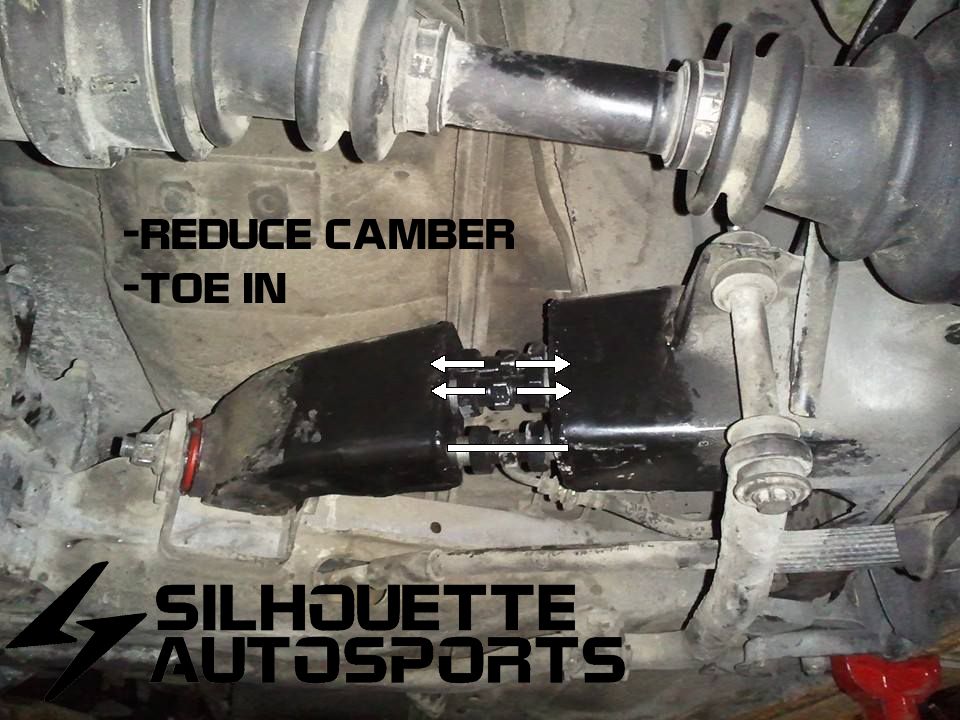

The upper two adjusters are lengthened to reduce camber and move toe in.


The lower two adjusters are shortened to reduce camber and move toe out.

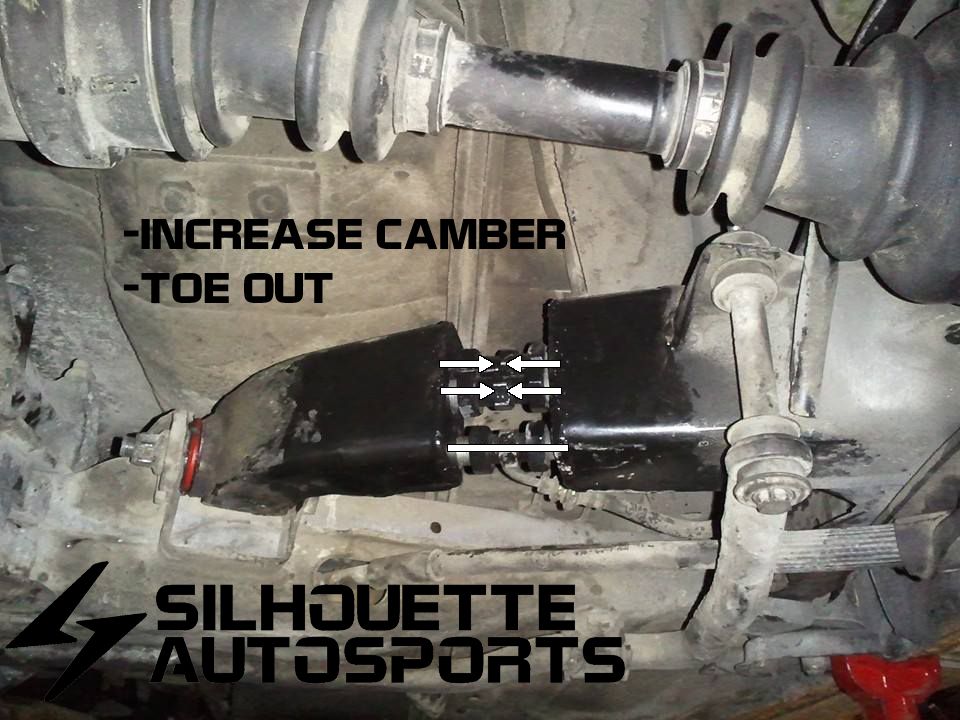

The upper two adjusters are shortened to increase camber and move toe out.


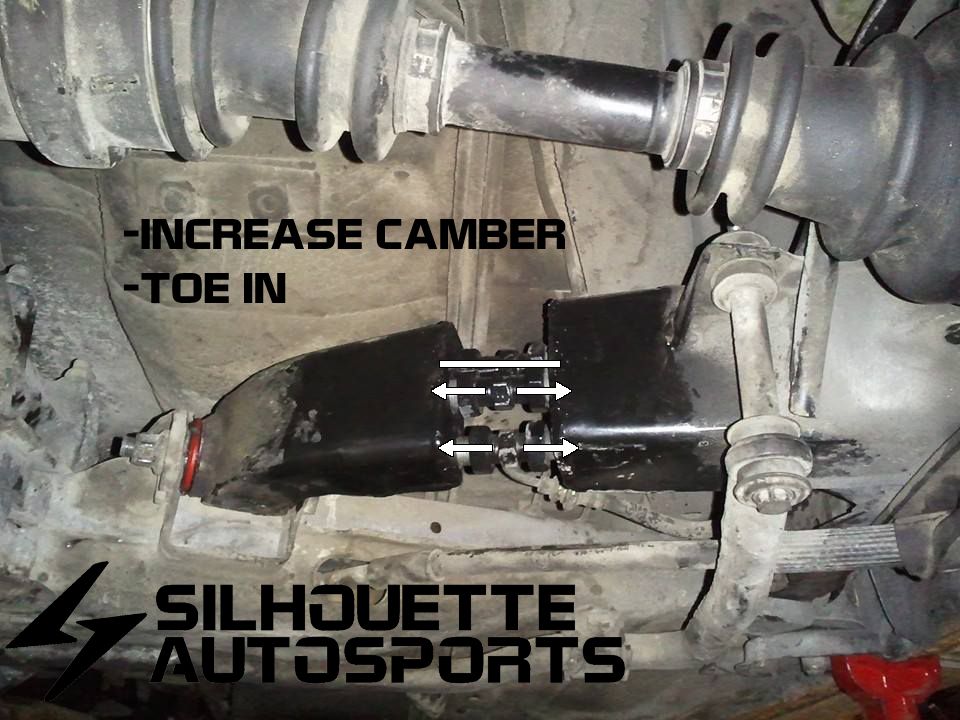

The lower two adjusters are lengthened to increase camber and move toe in.

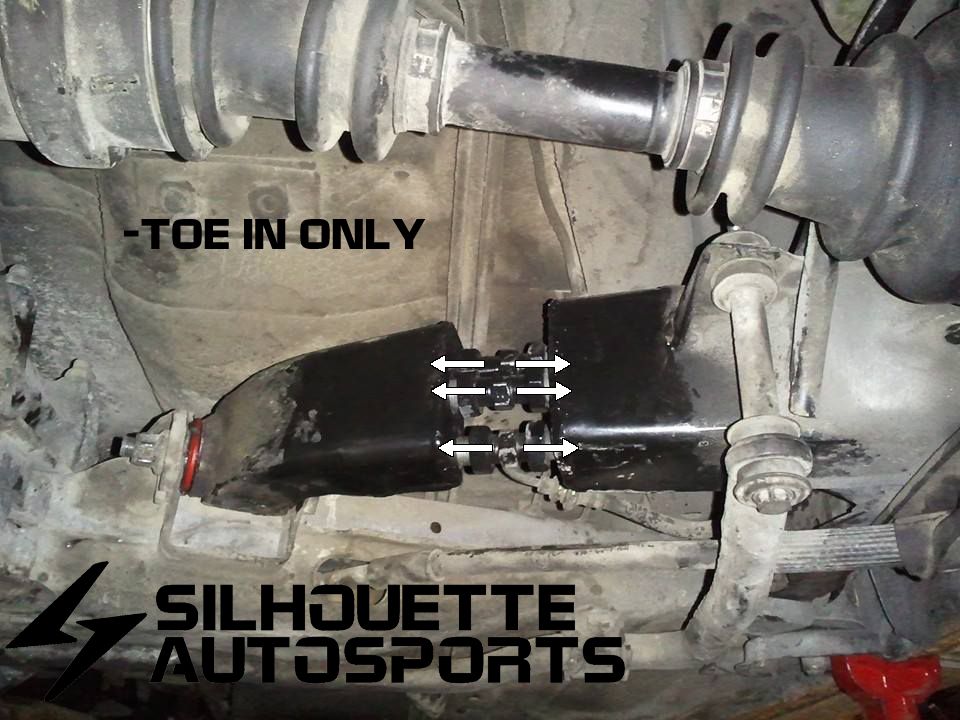

All three adjusters are lengthened together to only move toe in.

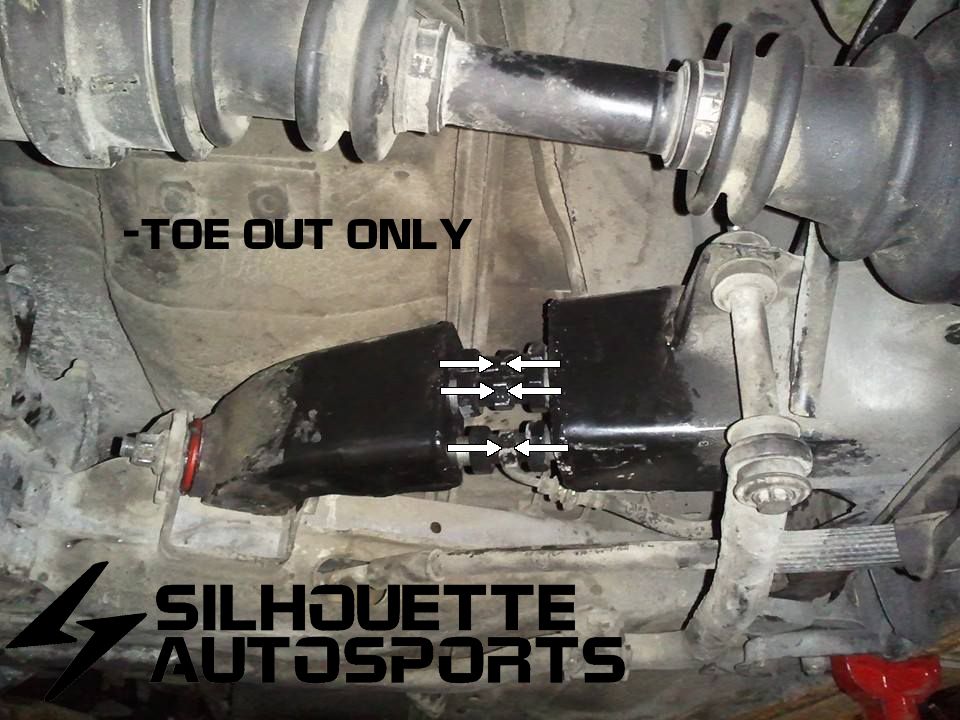

All three adjusters are shortened together to only move toe out.


Feel free to ask questions and share your experience adjusting your brackets.

Facebook Share


Waylon Deno - Silhouette Autosports (check it out on facebook)
Drift Build Thread
Quote from: Arro
you sir are emblazoned with win.

Offline andyrhode

  • Drift Dildo
  • n00b
  • **
  • Location: Reno, NV
  • Posts: 43
  • Drift Dildo
Can't wait to pick some of these up!

Offline Arro

  • Administrator
  • S12 Guru
  • *****
  • Location: San Jacinto, CA, USA (951)
  • Posts: 16,885
  • Vehicle: 1985 Nissan 200SX
    • http://www.cardomain.com/id/arro200sx
So maximum camber adjustment is....?
-Jason Arro


'85 Nissan 200SX (KA24DE)
formerly,
'85 Nissan Silvia RS-X - FJ20 w/ dual Weber carbs
'84 Nissan 200SX Turbo
'85 Nissan 200SX Turbo
Drive it like you stole it, and work on it like you married it - self quote
Quote from: ka-t.org
Hella flush and all associates should be gunned down for brainwashing people into thinking a 225 and lots of camber is proper wheel fitment. THAT IS EASY, anyone can camber a skinny as tire till it dosnt rub. Now fitting an 11 with a 315 on stock fender with reasonable camber, that is fitment. And looks, and performs better than both.
i dont own a s12 at the moment but trying to acquire one to get rid of my s13 hatch
Quote from: SHOUTBOX
[27:54] zastaba: I had a friend touch the contacts on his distributer once
[28:04] zastaba: He did the super jumping up and down pain dance

Offline IggyEGuana

  • Builder - Driver
  • S12 Guru
  • *****
  • Location: Hawthorne, California, USA
  • Posts: 3,754
So maximum camber adjustment is....?
That depends on your ride height, how you cut your arms, and how far you want to push it. We took Garys SE from about 4 degrees to less than 1 degree and that was while lowering the car another inch and setting toe perfect.
