Author Topic: Remote mount turbo V6 project  (Read 149298 times)

Offline Cajun1guy

  • Old fart (pedoro numero uno)
  • Full Member
  • ***
  • Location: Mandeville, Lousyana
  • Posts: 758
  • Vehicle: 1984 Nissan 200SX
Re: Remote mount turbo V6 project
« Reply #600 on: 09:49:29 PM / 29-Sep-15 »
I've been looking, where DID you find the sway bar and strut rod bushings for twenty shipped!?

Offline mc

Re: Remote mount turbo V6 project
« Reply #601 on: 07:11:38 AM / 30-Sep-15 »
Damn bro is there anything you don't do?
Sideway... LOL...thanks.
Post Merge
I've been looking, where DID you find the sway bar and strut rod bushings for twenty shipped!?
Cajun...it  was just lucky good timing
...someone lost interest on a build and let it go really cheap over at Z31Performance....i didnt really need it because i had replaced the bushings with aftermarket rubber...but on disassembly to install the sway poly all that rubber was torn in less than a year...Dorman makes crappy stuff.
Post Merge
I'm coming to your house for my next alignment!
Red...long road trip, do it yourself...i've done it to both of my cars now, the other is a 91 Camry turbo and both are aligned better than what i have paid someone....handle great and track straight.
...my plan is to slightly raise the rear springs with some rubber booster inserts to help reduce the rear camber closer to zero and hopefully being able to bring the rear toe closer to zero....right now the rear toe is fully maxed out, its in spec by the manual but at the outer range.
« Last Edit: 07:35:51 AM / 30-Sep-15 by mc »

Offline mc

Re: Remote mount turbo V6 project
« Reply #602 on: 07:51:04 AM / 23-Oct-15 »
alignment update....i went through the sequence again to fine tune the measurements....this time i leveled the floor spots perfect, i used thick 1.5x12x12 garden pavers and wood shims...i also tried shimming the rear springs to reduce camber[top of fender arch to ground is 28"....much better results.
front driver camber 0*     toe in -.61mm
front pass camber  0*      toe in -.18mm
rear driver camber 0*      toe in -.23mm
rear pass camber .65*     toe in -.18mm
Post Merge

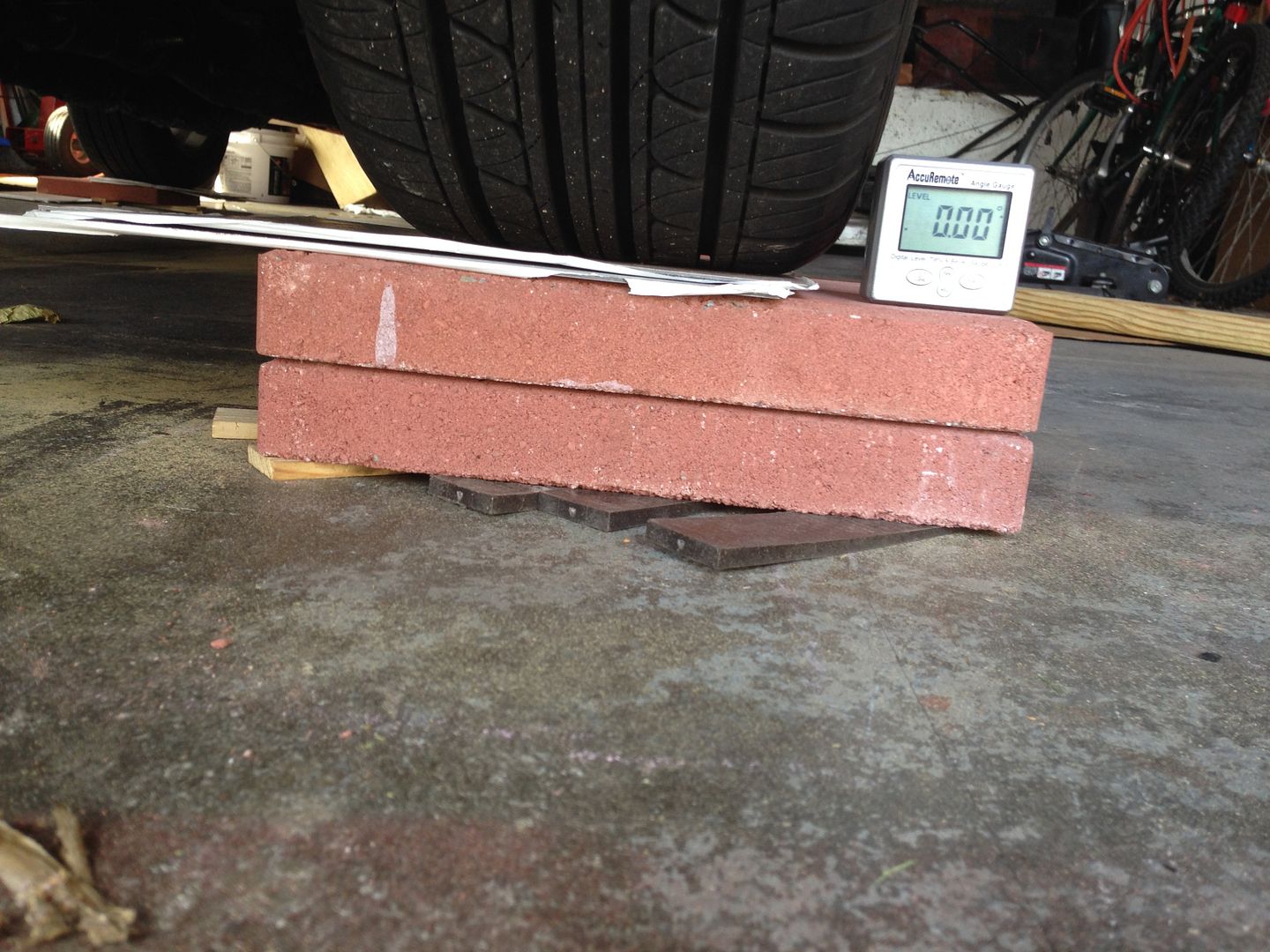

pix of tiles... saw these at Lowes and figured they are less likely to crack while shimming...very cheap as well. i still use the vinyl tiles on top to allow it to slide/settle the suspension.

« Last Edit: 07:30:27 AM / 02-Nov-17 by mc »

Offline Cajun1guy

  • Old fart (pedoro numero uno)
  • Full Member
  • ***
  • Location: Mandeville, Lousyana
  • Posts: 758
  • Vehicle: 1984 Nissan 200SX
Re: Remote mount turbo V6 project
« Reply #603 on: 09:58:35 PM / 23-Oct-15 »
Gotta hand it to you...precision is your game! I love the creative solutions you have to get the adjustments in there.

Offline sideways_s12

  • CS12 OG
  • Moderators
  • S12 Guru
  • *****
  • Location: Las Vegas NV
  • Posts: 11,013
  • Vehicle: 1987 Nissan 200SX
  • Quit Fuckin around and start the car!
Re: Remote mount turbo V6 project
« Reply #604 on: 01:13:57 AM / 24-Oct-15 »
Crazy dude! You know how to get shit done!

Offline mc

Re: Remote mount turbo V6 project
« Reply #605 on: 11:36:23 AM / 29-Apr-16 »


...started installing the spare 3.54 rear with the Phantom grip unit....i hate dealing with the cv axle remove and reinstall.
Post Merge


....out with the old, i needed to swap over the driveshaft  flange and finned cover.
Post Merge


...works great on bench!
« Last Edit: 03:22:06 PM / 02-Nov-17 by mc »

Offline iceageg

  • Full Member
  • ***
  • Location: Denver, CO
  • Posts: 633
Re: Remote mount turbo V6 project
« Reply #606 on: 07:14:57 PM / 29-Apr-16 »
One of the best threads on this forum revived with new content.  Today is a good day for us all.
I was afraid all the five gallon buckets of pain stacked four high were going to fall over

Offline mc

Re: Remote mount turbo V6 project
« Reply #607 on: 10:09:49 AM / 30-Apr-16 »


..this tool "walks" the  driveshaft flange right off.
« Last Edit: 03:19:36 PM / 02-Nov-17 by mc »

Offline mc

Re: Remote mount turbo V6 project
« Reply #608 on: 10:25:04 AM / 01-May-16 »
...finished up the reinstall....i have found that it's easier to install the  axles into the differential first and than position/bolting the differential into the rear crossmember, much less  wrestling trying to get the axles liNed up....took it out for a drive aND it sounds /feels the same, no funny noises!...it's raining  today in Ny so no proof of 11,s yet.  LOL

Offline iceageg

  • Full Member
  • ***
  • Location: Denver, CO
  • Posts: 633
Re: Remote mount turbo V6 project
« Reply #609 on: 06:32:03 PM / 01-May-16 »
Proof or it didn't happen!
I was afraid all the five gallon buckets of pain stacked four high were going to fall over

Offline sideways_s12

  • CS12 OG
  • Moderators
  • S12 Guru
  • *****
  • Location: Las Vegas NV
  • Posts: 11,013
  • Vehicle: 1987 Nissan 200SX
  • Quit Fuckin around and start the car!
Re: Remote mount turbo V6 project
« Reply #610 on: 07:24:37 PM / 01-May-16 »
Nice work!

Offline mc

Re: Remote mount turbo V6 project
« Reply #611 on: 03:56:01 PM / 13-Nov-16 »
...i put off repairing this spot for to long and it was a lot worse than expect ed.

Post Merge
..removed the ground effects.

Post Merge
...i used Drexel grinder to get the weakest stuff moved out...i used a rust convertor to stabilize what was left...finished that over with fiberglass/resin,ect.

Post Merge
....sprayed it with a epoxy primer...finished it with urathane color and clear.

Post Merge
...i resprayed the ground effects kit.

Post Merge
....reassembled and polished.
« Last Edit: 03:25:00 PM / 02-Nov-17 by mc »

Offline Redneck

Re: Remote mount turbo V6 project
« Reply #612 on: 01:53:10 PM / 29-Nov-16 »
Looks great. Came out really nice. Love how the s14 5 spokes look on the SE too  :thumbsup:
FIrst my rims are horrible, than there ok when painted black , now my cars horrible, now my fenders are to much after i was told i couldnt do it.... Lol club s12 ftw.....  Only here have Ive been told they look like shit..... SOrry its not bone stock with crown vic rims running the stock vg making 130whp and looks generic like every other one. My car looks dope ive been told this a billion times on local forums....


Offline mc

Re: Remote mount turbo V6 project
« Reply #613 on: 06:20:11 PM / 02-Dec-16 »
Looks great. Came out really nice. Love how the s14 5 spokes look on the SE too  :thumbsup:
..thanks, I put a lot of effort for something in the end was covered over by the ground effects kit?  Hopefully the rust stays out there for awhile.

Offline mc

Re: Remote mount turbo V6 project
« Reply #614 on: 07:42:37 AM / 16-Jan-17 »
...picked up a cheap turbo jacket.
« Last Edit: 07:40:00 AM / 22-Jun-17 by mc »

Offline sideways_s12

  • CS12 OG
  • Moderators
  • S12 Guru
  • *****
  • Location: Las Vegas NV
  • Posts: 11,013
  • Vehicle: 1987 Nissan 200SX
  • Quit Fuckin around and start the car!
Re: Remote mount turbo V6 project
« Reply #615 on: 12:23:34 AM / 21-May-17 »
Photo not found boooo lol

Offline mc

Re: Remote mount turbo V6 project
« Reply #616 on: 06:03:23 AM / 21-May-17 »
...working on it
Post Merge
« Last Edit: 04:41:25 PM / 02-Nov-17 by mc »

Offline sideways_s12

  • CS12 OG
  • Moderators
  • S12 Guru
  • *****
  • Location: Las Vegas NV
  • Posts: 11,013
  • Vehicle: 1987 Nissan 200SX
  • Quit Fuckin around and start the car!
Re: Remote mount turbo V6 project
« Reply #617 on: 11:08:08 PM / 21-May-17 »
What are your power numbers?

Offline mc

Re: Remote mount turbo V6 project
« Reply #618 on: 07:51:50 AM / 23-May-17 »
...never "dyno'd" her, but g timer puts it in the 260-270 range.

Offline sideways_s12

  • CS12 OG
  • Moderators
  • S12 Guru
  • *****
  • Location: Las Vegas NV
  • Posts: 11,013
  • Vehicle: 1987 Nissan 200SX
  • Quit Fuckin around and start the car!
Re: Remote mount turbo V6 project
« Reply #619 on: 08:27:47 PM / 27-May-17 »
that's it ? with your mods I would of thought it was more... not that those numbers are bad
